PROTECTION

SPAR 1 - Nip Angle Protection

The SPAR 1 avoids getting caught between the belt and the roller and is the essential protection adaptable to all belt conveyor rollers.

  • Made out of anti-static polyethylene
  • Designed to perfectly fit the curve of rollers that are 89 mm or 133 mm in diameter
  • Roller lengths from 190 mm to 425 mm Can be used with almost any idler frame or bracket, thanks to its universal mounting brackets
  • Has a very long service life when properly adjusted Available standard for belts from 500mm to 1400mm

Carrying idlers

SPAR 1 - CLIP

The 'CLIP' version are made for OEM integrator, there are installed on the idler's plates properly design

SPAR 1 - Extruded

The Extruded version, are design for retrofit installation, for all types of rollers.

SPAR 1 - Ajustable

The adjustable version are made with absorber pieces. They granted a great setting for all angles.

Return rollers

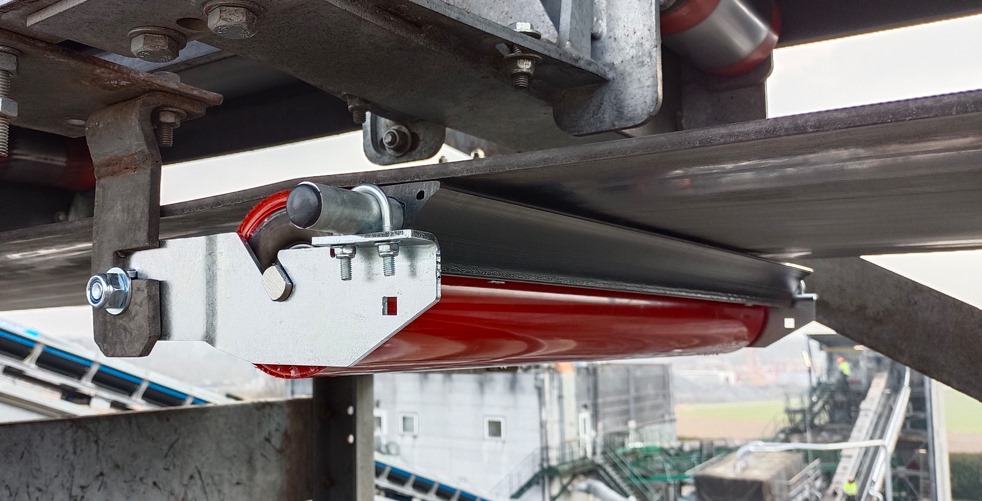

SPAR 1 - Nip point protection

Its exclusively made for return roller, can be provide with with safety basket.

SPAR 1 - Stop fall basket

In additionnal to our nip point protection, a stop fall basket can be fitted to our design. They mosltely protects pedestrian to increase safety.

SPAR 1 Highlights

  • Avoid installation gets clogged
  • Avoid blocking the installations due to the protective grids.
  • Installs in the way of belt's working
  • Improves routine maintenance visibility in the absence of a protective housing.
  • Perfectly shaped to regular rollers
  • Related to UE norm EN 620 concerning protection around conveyor belt
  • Operator protection from high risk to get injured through the belt moving
  • Fitting to the idler itself
  • Easy to install
  • Higher Lifespan
  • All market rollers are concerned
  • Inspection optimising of rollers statement
  • Volume occupation to protect from nip angles
